Roof profiles
Sinus Profile - Norway
Sinus - a combination of on trend and traditional profiles
Sinus profiles are suitable for use in both traditional projects and entirely new applications on the roofs and facades of offices, industrial buildings and farms. Both horizontally and vertically, Sinus interacts or contrasts with wood, glass, concrete and stone in facades and decorations.
Sinus profiles can be used to enclose entire buildings easily and quickly which are flexible in terms of width, and are easy to bend during installation. Profiles can be supplied with an anti-condensation coating of Constop Filt to suit your requirements.
Product secification
EN-Construction-Product-Roof-Sinus - Nordics - 18R.990

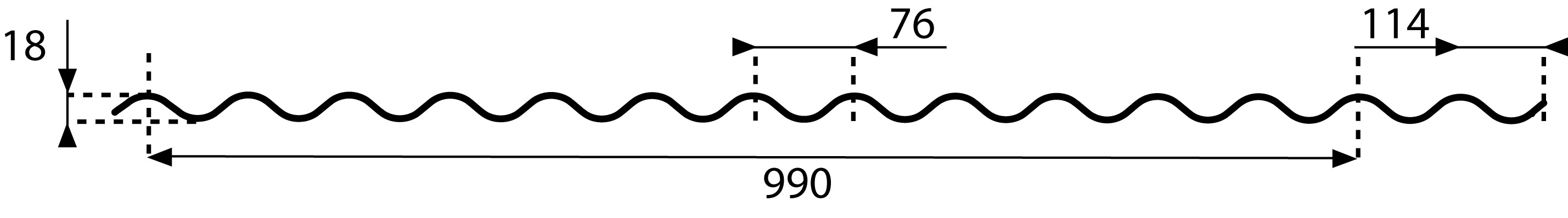

18R.990
Specification detail
EN-Construction-Product-Sinus - Nordics - 18R.990 | Technical data
Technical data
| Technical data 18R.990 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 18mm |
| Min. length: | 500mm |
| Max. length: | 7500mm |
| Screws required: | 8 stk 4,9x35 mm + 4 stk 4,8x20 mm |
| Material: | Colorcoat HPS200 Ultra®, Colorcoat® PE25 (polyester), Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,40 | 4,00 |
| 0,50 | 5,00 |
| 0,60 | 6,00 |
- Available with Constop Filt.
If you have any questions or for further information click here to contact us.
EN-Construction-Product-Sinus - Nordics-downloads
Downloads
Product downloads
NO-Construction-Norway Byggsytemer-Installation guide-Monteringsanvisning Sinus
Monteringsanvisning Sinus
EN-Construction-Constop-Datasheet
Constop Felt Datasheet (Norsk)
ComFlor® is our high performance profiled, metallic coated, steel deck for use in composite flooring across a range of building types.
NO-Construction-Norway Byggsytemer-Certificate- Sinus 18R 990 18W 1066
Produkt Sertifikat Sinus 18R 990 & 18W 1066
NO-Construction-Norway Byggsytemer-Certificate- Sinus 45RW 990
Produkt Sertifikat Sinus 45RW 990
EN-Construction-Product-Roof-Sinus - Nordics - 27R.1000
27R.1000
Specification detail
EN-Construction-Product-Sinus - Nordics - 27R.1000 | Technical data (27R.1000)
Technical data
| Technical data 27R.1000 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 27mm |
| Min. length: | 500mm |
| Max. length: | 12000mm *special order |
| Screws required: | 8 stk 4,9x35 mm + 4 stk 4,8x20 mm |
| Material: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,65 | 6,30 |
| 0,75 | 7,50 |
If you have any questions or for further information click here to contact us.
NO-Construction-Product-Sinus - Nordics-downloads
Nedlastinger
Produktnedlastinger
NO-Construction-Norway Byggsytemer-Installation guide-Monteringsanvisning Sinus
Monteringsanvisning Sinus
EN-Construction-Constop-Datasheet
Constop Felt Datasheet (Norsk)
ComFlor® is our high performance profiled, metallic coated, steel deck for use in composite flooring across a range of building types.
NO-Construction-Norway Byggsytemer-Certificate- Sinus 18R 990 18W 1066
Produkt Sertifikat Sinus 18R 990 & 18W 1066
NO-Construction-Norway Byggsytemer-Certificate- Sinus 45RW 990
Produkt Sertifikat Sinus 45RW 990
NO-Construction-Norway Byggsytemer -FDV Colorcoat HPS200 Ultra
FDV Dokumentasjon - Colorcoat HPS200 Ultra®
Norway Byggsytemer FDV-Dokumentasjon - Profiler og Produkter i stål med Colorcoat HPS200 Ultra®
colorcoat-hps200-ultra-fdv-no.pdf716.04 KB
NO-Construction-Norway Byggsytemer -FDV Colorcoat PE 25
FDV-Dokumentasjon - Colorcoat® PE 25 (Polyester) Lakkerte i stål1
Norway Byggsytemer FDV-Dokumentasjon - Profiler og produkter i Colorcoat® PE 25 (Polyester) Lakkerte i stål1
colorcoat-pe-25-fdv-no.pdf390.46 KB
NO-Construction-Norway Byggsytemer -FDV Aluzink
FDV-Dokumentasjon Aluzink®
Norway Byggsytemer FDV-Dokumentasjon Aluzink®
colorcoat-aluzinc-fdv-no.pdf91.54 KB
NO-Construction-Norway Byggsytemer -FDV Colorcoat Prisma
FDV-Dokumentasjon - Colorcoat Prisma®
Norway Byggsytemer FDV-Dokumentasjon - Profiler og Produkter i stål med Colorcoat Prisma®
colorcoat-prisma-fdv-no.pdf337.89 KB
NO-Construction-DR!PSTOP-Høyprofil-Antikondensfilt datablad
Antikondensfilt datablad
NO-Construction-Colour_cards-Colorcoat HPS200 Ultra Colourcard
Colorcoat HPS200 Ultra® Fargekart
EN-Construction-Product-Roof-Sinus - Nordics - 42R.960
42R.960
Specification detail
EN-Construction-Product-Sinus - Nordics - 42R. 960 | Technical data
Technical data
| Technical data 42R.960 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 42mm |
| Min. length: | 500mm |
| Max. length: | 12000mm *Special order |
| Screws required: | 8 stk 4,9x35 mm + 4 stk 4,8x20 mm |
| Material: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,40 | 4,00 |
| 0,50 | 5,00 |
| 0,60 | 6,00 |
If you have any questions or for further information click here to contact us.
NO-Construction-Product-Sinus - Nordics-downloads
Nedlastinger
Produktnedlastinger
NO-Construction-Norway Byggsytemer-Installation guide-Monteringsanvisning Sinus
Monteringsanvisning Sinus
EN-Construction-Constop-Datasheet
Constop Felt Datasheet (Norsk)
ComFlor® is our high performance profiled, metallic coated, steel deck for use in composite flooring across a range of building types.
NO-Construction-Norway Byggsytemer-Certificate- Sinus 18R 990 18W 1066
Produkt Sertifikat Sinus 18R 990 & 18W 1066
NO-Construction-Norway Byggsytemer-Certificate- Sinus 45RW 990
Produkt Sertifikat Sinus 45RW 990
NO-Construction-Norway Byggsytemer -FDV Colorcoat HPS200 Ultra
FDV Dokumentasjon - Colorcoat HPS200 Ultra®
Norway Byggsytemer FDV-Dokumentasjon - Profiler og Produkter i stål med Colorcoat HPS200 Ultra®
colorcoat-hps200-ultra-fdv-no.pdf716.04 KB
NO-Construction-Norway Byggsytemer -FDV Colorcoat PE 25
FDV-Dokumentasjon - Colorcoat® PE 25 (Polyester) Lakkerte i stål1
Norway Byggsytemer FDV-Dokumentasjon - Profiler og produkter i Colorcoat® PE 25 (Polyester) Lakkerte i stål1
colorcoat-pe-25-fdv-no.pdf390.46 KB
NO-Construction-Norway Byggsytemer -FDV Aluzink
FDV-Dokumentasjon Aluzink®
Norway Byggsytemer FDV-Dokumentasjon Aluzink®
colorcoat-aluzinc-fdv-no.pdf91.54 KB
NO-Construction-Norway Byggsytemer -FDV Colorcoat Prisma
FDV-Dokumentasjon - Colorcoat Prisma®
Norway Byggsytemer FDV-Dokumentasjon - Profiler og Produkter i stål med Colorcoat Prisma®
colorcoat-prisma-fdv-no.pdf337.89 KB
NO-Construction-DR!PSTOP-Høyprofil-Antikondensfilt datablad
Antikondensfilt datablad
NO-Construction-Colour_cards-Colorcoat HPS200 Ultra Colourcard
Colorcoat HPS200 Ultra® Fargekart
EN-Construction-Product-Roof-Sinus - Nordics - 45R.900
45R.900
Specification details
EN-Construction-Product-Sinus - Nordics - 45R.900 | Technical data
Technical data
| Technical data 45R.900 | |
|---|---|
| Thickness: | 0,50/0,60/0,65mm |
| Height: | 45mm |
| Min. length: | 500mm |
| Max. length: | 7500mm |
| Screws required: | 8 stk 4,9x35 mm + 4 stk 4,8x20 mm |
| Material: | Colorcoat HPS200 Ultra®, Colorcoat® PE25, Colorcoat Prisma®, AluZink |
| Thickness mm | Weight kg/m2 |
|---|---|
| 0,50 | 5,30 |
| 0,60 | 6,00 |
- Available with Constop Filt.
If you have any questions or for further information click here to contact us.
NO-Construction-Product-Sinus - Nordics-downloads
Nedlastinger
Produktnedlastinger
NO-Construction-Norway Byggsytemer-Installation guide-Monteringsanvisning Sinus
Monteringsanvisning Sinus
EN-Construction-Constop-Datasheet
Constop Felt Datasheet (Norsk)
ComFlor® is our high performance profiled, metallic coated, steel deck for use in composite flooring across a range of building types.
NO-Construction-Norway Byggsytemer-Certificate- Sinus 18R 990 18W 1066
Produkt Sertifikat Sinus 18R 990 & 18W 1066
NO-Construction-Norway Byggsytemer-Certificate- Sinus 45RW 990
Produkt Sertifikat Sinus 45RW 990
NO-Construction-Norway Byggsytemer -FDV Colorcoat HPS200 Ultra
FDV Dokumentasjon - Colorcoat HPS200 Ultra®
Norway Byggsytemer FDV-Dokumentasjon - Profiler og Produkter i stål med Colorcoat HPS200 Ultra®
colorcoat-hps200-ultra-fdv-no.pdf716.04 KB
NO-Construction-Norway Byggsytemer -FDV Colorcoat PE 25
FDV-Dokumentasjon - Colorcoat® PE 25 (Polyester) Lakkerte i stål1
Norway Byggsytemer FDV-Dokumentasjon - Profiler og produkter i Colorcoat® PE 25 (Polyester) Lakkerte i stål1
colorcoat-pe-25-fdv-no.pdf390.46 KB
NO-Construction-Norway Byggsytemer -FDV Aluzink
FDV-Dokumentasjon Aluzink®
Norway Byggsytemer FDV-Dokumentasjon Aluzink®
colorcoat-aluzinc-fdv-no.pdf91.54 KB
NO-Construction-Norway Byggsytemer -FDV Colorcoat Prisma
FDV-Dokumentasjon - Colorcoat Prisma®
Norway Byggsytemer FDV-Dokumentasjon - Profiler og Produkter i stål med Colorcoat Prisma®
colorcoat-prisma-fdv-no.pdf337.89 KB
NO-Construction-DR!PSTOP-Høyprofil-Antikondensfilt datablad
Antikondensfilt datablad
NO-Construction-Colour_cards-Colorcoat HPS200 Ultra Colourcard
Colorcoat HPS200 Ultra® Fargekart
