We have a broad service centre network offering slitting services from stock and against short lead times.
Our processing capabilities are summarised below:
| Steelpark Wednesfield | Lisburn, Ireland | |
|---|---|---|
| Gauge | 0.20-8.00 | 0.50-2.90 |
| Width | 34.5-2020 | 60-1524 |
| Length | Coil | Coil |
| Hot-rolled | Yes | Yes |
| Cold-rolled | Yes | Yes |
| Metallic coated (HDG, EZ. ZM) | Yes | Yes |
| Aluminium | Yes | - |
| Reversing mill plate (wide flats) | - | - |
All dimensions in mm.
For information on our service centre networks click below:

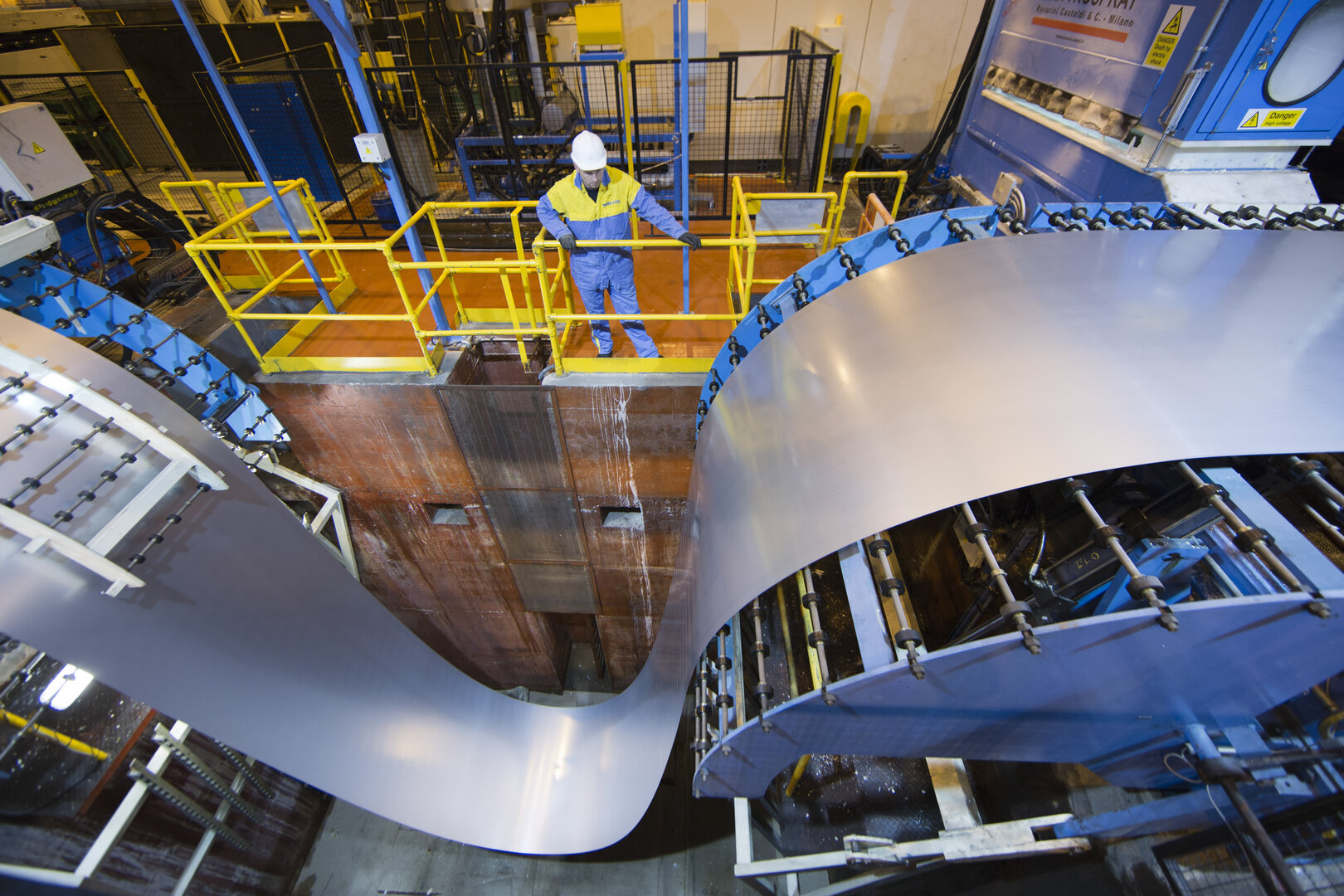

We offer a broad range of decoiling services for a wide variety of end-user applications.
Our processing capabilities are summarised below:
| Steelpark, Wednesfield | Lisburn, Ireland | Heavy gauge, Llanwern | ||
|---|---|---|---|---|
| Line 1 | Line 2 | |||
| Gauge | 0.50-3.00 | 0.35-3.20 | 0.50-6.00 | 3.00-25 |
| Width | 150-1975 | 200-2000 | 610-2000 | <2100 |
| Length | 150-4000 | 200-4000 | 300-8700 | <17000 |
| Hot-rolled | Yes | Yes | Yes | Yes |
| Cold-rolled | Yes | Yes | Yes | - |
| Metallic coated (HDG, EZ. ZM) | Yes | Yes | Yes | - |
| Aluminium | Yes | Yes | - | - |
| Reversing mill plate (wide flats) | - | - | - | - |
All dimensions in mm.
We offer a broad range of blanking processing services.
Our processing capabilities are summarised below:
Steelpark, Wednesfield | Lisburn, Ireland | |||||
|---|---|---|---|---|---|---|
Light multistranding 1 | Light multistranding 2 | Press blanking | Trapezoidal blanking | Radial blanking | Multistranding | |
| Gauge | 0.50-3.00 | 0.35-3.20 | 0.40-3.00 | 0.35-3.00 | 0.40-3.00 | 0.50-2.90 |
| Width | 150-1975 | 600-2000 | 100-2050 | 200-2100 | 400-1440 | 250-1530 |
| Length | 150-4000 | 420-4000 | 100-5000 | 200-4000 | 300-5000 | 300-4000 |
| Hot-rolled | Yes | Yes | Yes | Yes | Yes | Yes |
| Cold-rolled | Yes | Yes | Yes | Yes | Yes | Yes |
| Metallic coated (HDG, EZ, ZM) | Yes | Yes | Yes | Yes | Yes | Yes |
| Aluminium | Yes | Yes | Yes | Yes | Yes | - |
| Reverse mill plate (wide flats) | - | - | - | - | - | - |
All dimensions in mm.

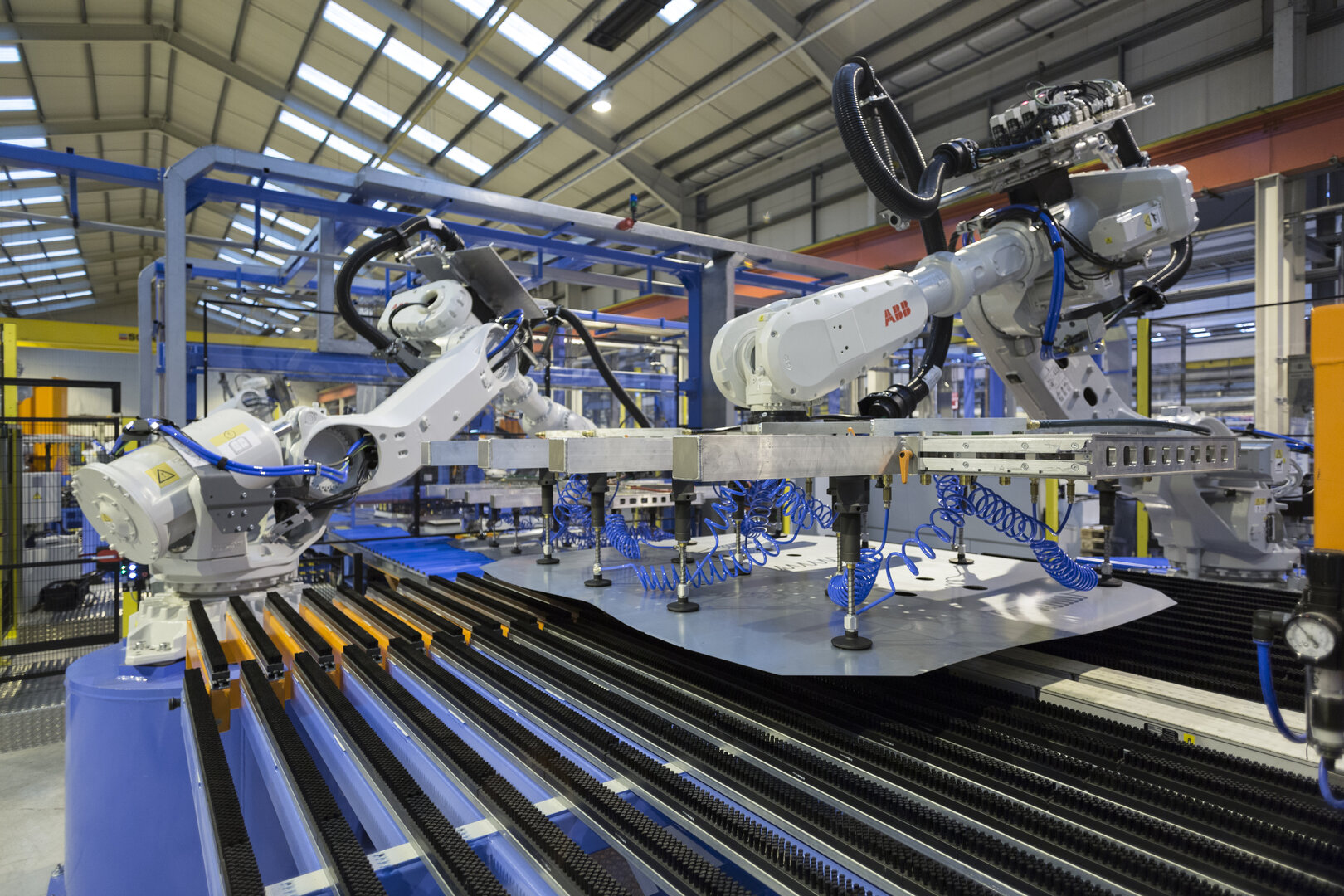

As part of our service we offer tailor welding.
Our processing capabilities are summarised below:
Steelpark, Wednesfield
| Gauge | 0.50-3.00 |
|---|---|
| Width | <2800 |
| Length | <3800 |
| Hot-rolled | Yes |
| Cold-rolled | Yes |
| Metallic coated (HDG, EZ, ZM) | Yes |
| Aluminium | - |
| Reverse mill plate (wide flats) | - |
All dimensions in mm.
As part of our service we offer a range of
profiling.
Our processing capabilities are summarised below:
Steelpark, Wednesfield
| Oxy-Gas profiling | High Definition Plasma Profiling | Final processing | |
|---|---|---|---|
| Gauge | 5.0-170.0 | 4.0-55.0 | CNC Machining, Flattening, Chamfering |
| Width | <5000 | <5700 | |
| Length | <18000 | <18000 | |
| Hot-rolled | Yes | Yes | Yes |
| Cold-rolled | - | - | - |
| Metallic coated (HDG, EZ, ZM) | - | - | - |
| Aluminium | - | - | - |
| Reverse mill plate (wide flats) | Yes | Yes | Yes |
All dimensions in mm.

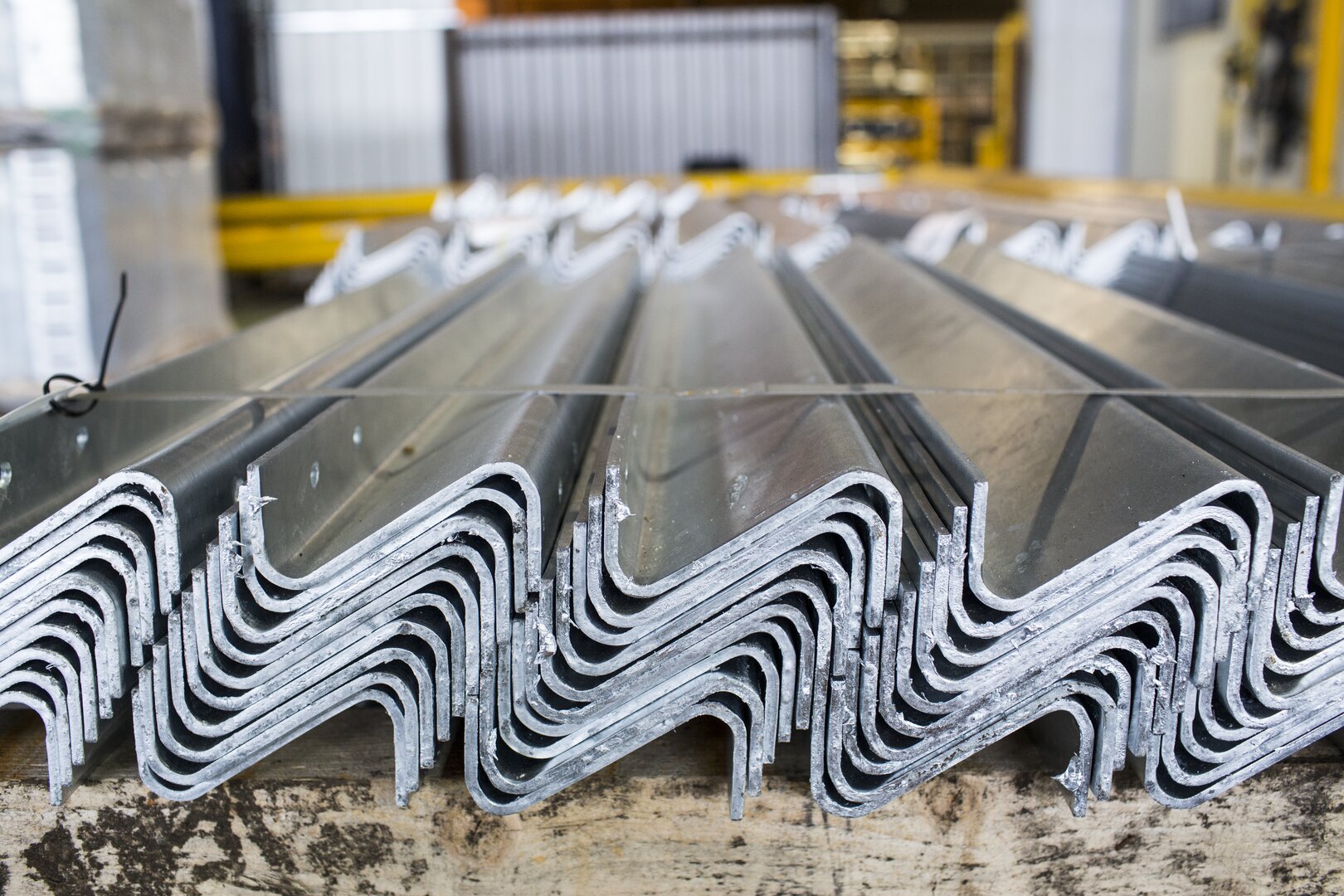

As part of our service we offer rollforming.
Our capabilities are summarised below:
Llanwern
| Construction Products | |
|---|---|

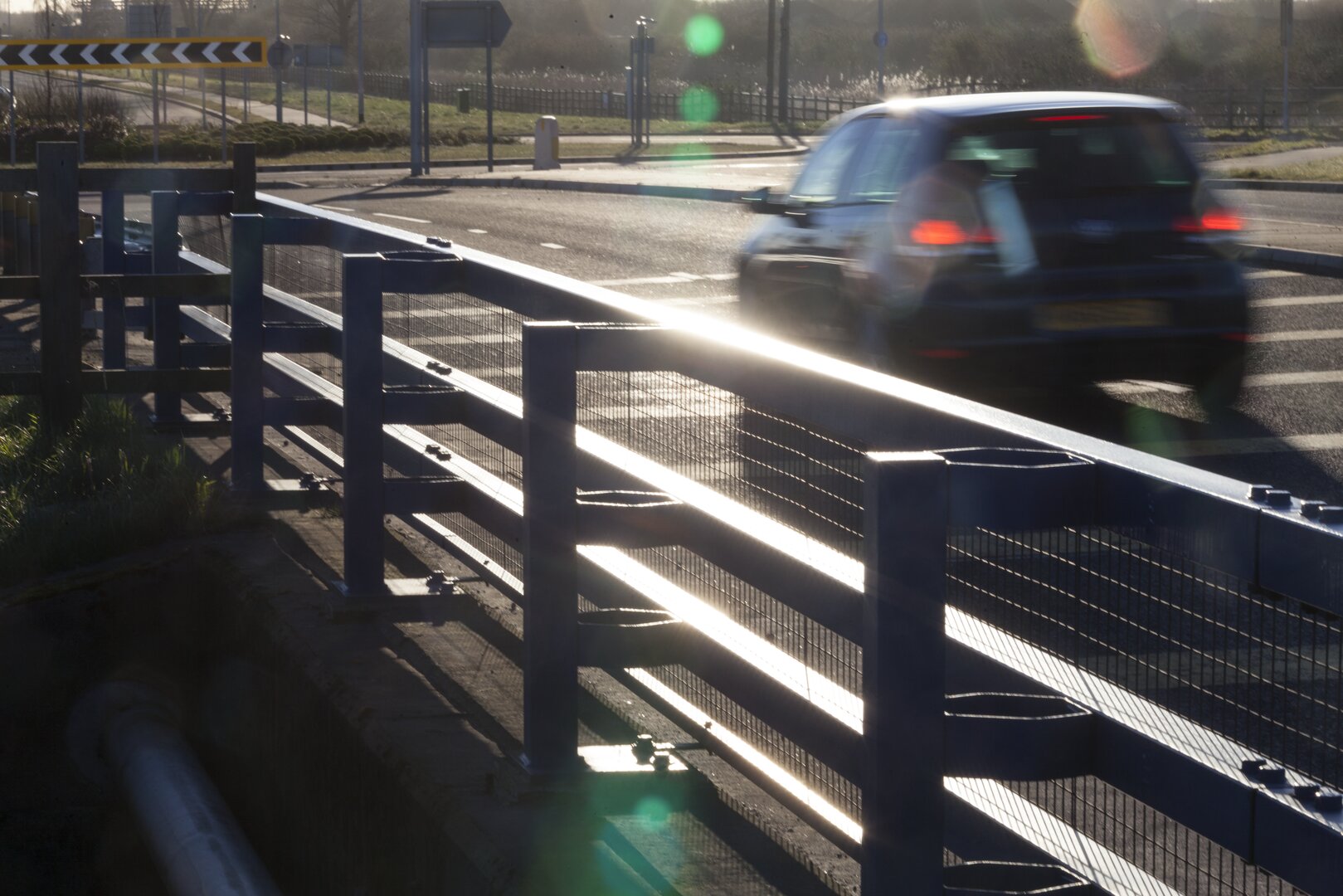

| Width | Highways Barriers, Solar frames, HEVAC, Trench Sheeting |
| Length | |
| Gauge | |
| Hot-rolled | Yes |
| Cold-rolled | - |
| Metallic coated (HDG, EZ, ZM) | Yes |
| Aluminium | - |
| Reverse mill plate (wide flats) | - |
Our service centre portfolio
EN-Service Centres-UK Steelpark
Supplying an extensive range of sheets and blanks of cold rolled, metallic coated and hot rolled specifications, our large-scale decoiling facilities bring the benefits of excellent flatness and surface presentation to customers in the sheet metal and light engineering markets.With a complete multi-metal and full-finish capability, including decoiling, slitting, blanking, press blanking and tailor welded blanks, our hi-tech service centre provides dedicated processing and services for OEMs and tier suppliers.

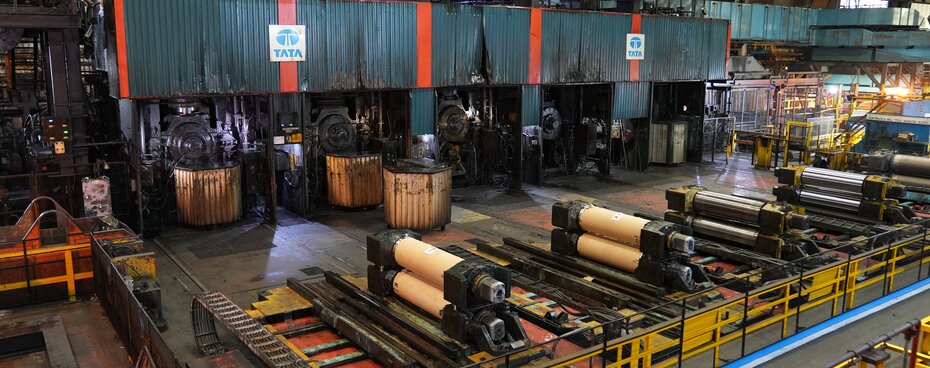

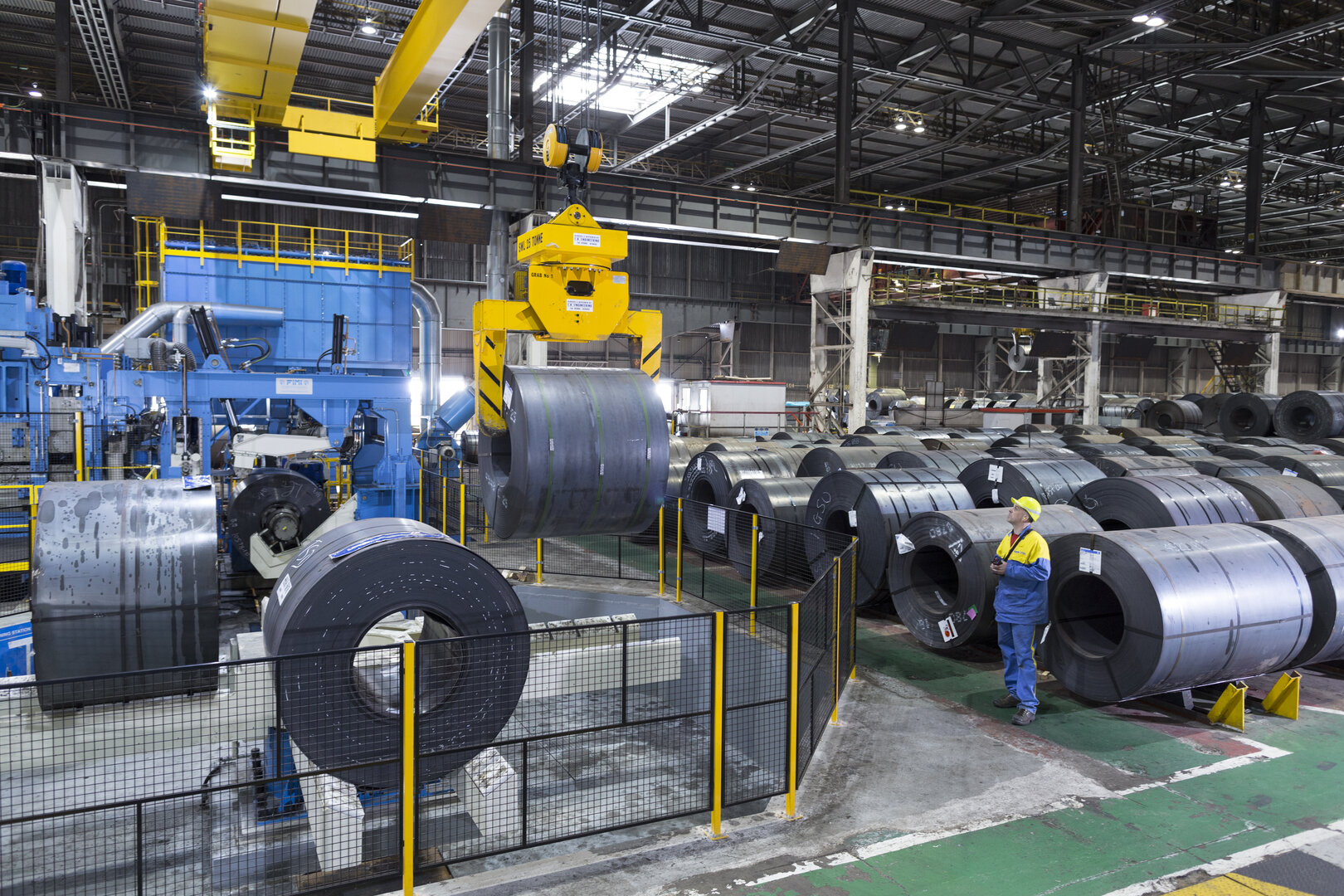

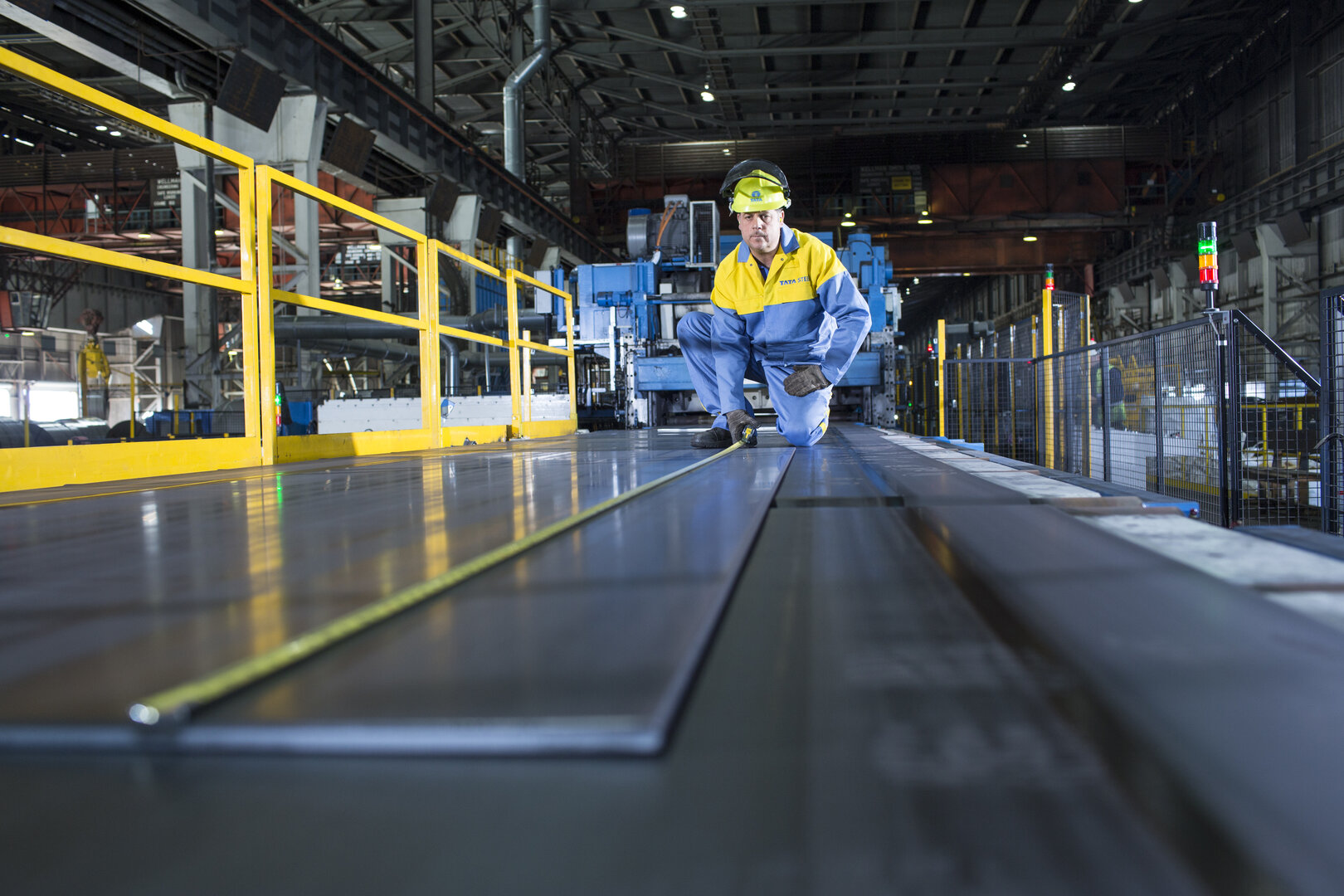

EN-Service Centres-UK Heavy Gauge Decoiling Llanwern
Customers in the lifting and excavating, energy and power, ship building and heavy engineering markets know they can rely on the best-in-class decoiling facilities at our heavy gauge service centres for the full range of hot rolled coil, tailored to their exact specifications.

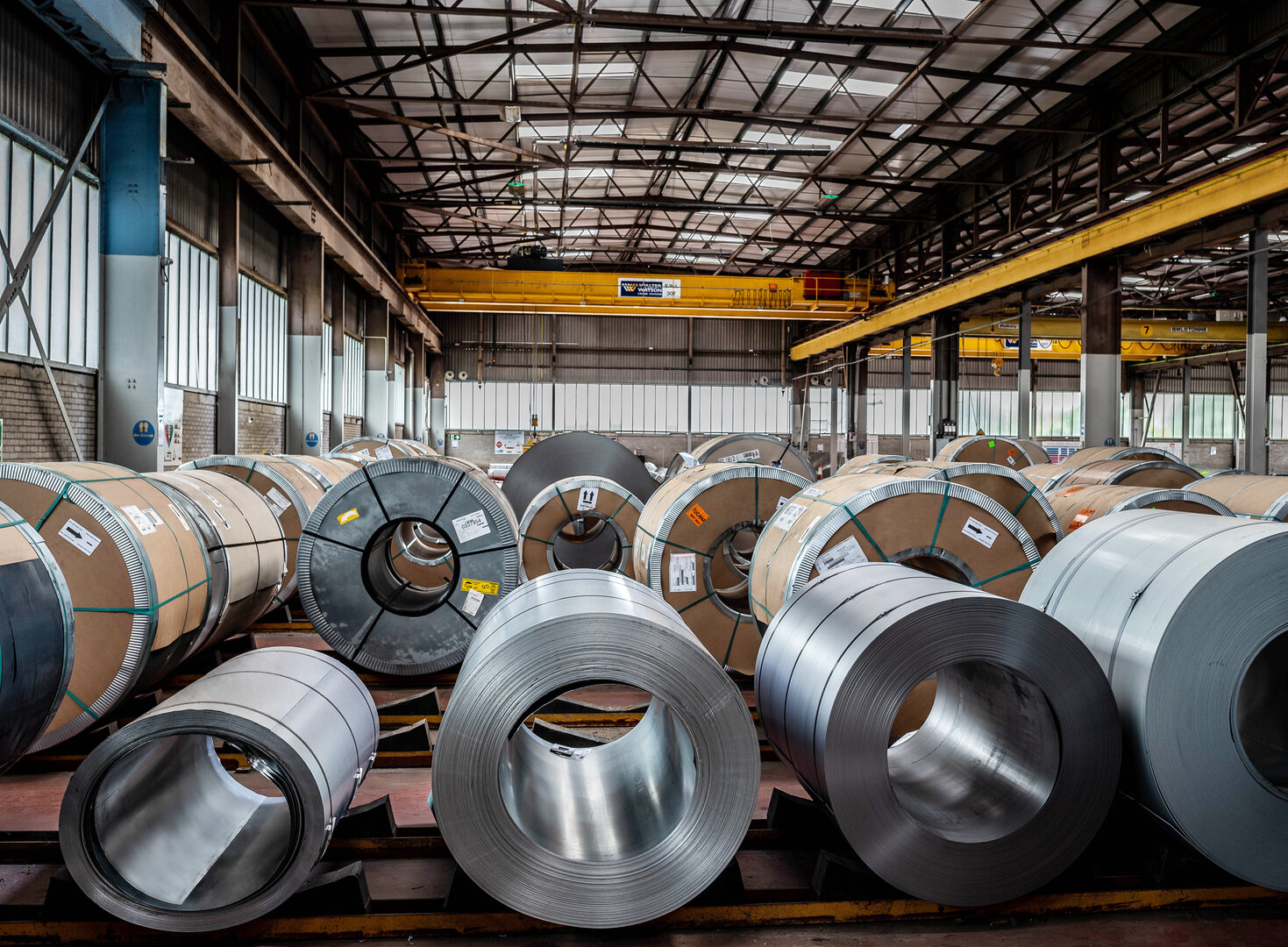

EN-Service Centres-Ireland Lisburn
The Ireland Service Centre processes and distributes the full range of Tata Steel's flat products from one location. In-house coil slitting, decoiling and shearing provide a wide processing capability to meet customer requirements locally from an extensive stock range.
EN-Service centres-Contact-UK Steelpark
Steelpark
The Steelpark
Steelpark Way
Wednesfield, Wolverhampton
WV11 3SQ
